Analogue Door Entry Systems / Gate Entry Systems

The moshi Analogue Door/Gate Entry Systems offer stylish and robust analogue door/gate entry phones. Suitable for connection to a PBX or PSTN. The slim and compact Italian design can be either surface or flush mounted and the name buttons are back lit in an elegant blue. The front plate has been designed with an anodised aluminium finish. The moshi system offers visitors a very stylish welcome and first impression.

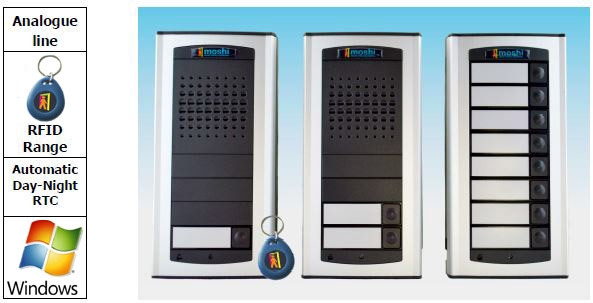

moshi-door-controller

Key Features

  • 1 or 2 button units plus the option to add expansion modules – Up to 98 buttons
  • Staff can open the door by themselves using a RFID tag with the latest Moshi RFID entry phone or by entering an access code into an optional keypad unit
  • Well designed, self-contained units making them easy to install
  • Always be able to answer the door even if the premises are unoccupied
  • Moshi door entry phones can operate multiple doors, lighting or even over door heating systems
  • Hands free communication only requires a live telephone line or analogue socket, even in a power cut
  • Tone (DTMF) and Pulse dial
  • 2 numbers with a max of 24 digits can be stored on each button including *, #, recall and pause. In the event of the first number not being answered or busy the call can be forwarded to another ext. or mobile
  • Automatic Day/Night mode according to a set time or by a code entered from a telephone
  • 2 independent contacts/relays with 8 different switching modes per relay
  • Switching by 1 or 2 pulses (sliding gate) when the electrical lock is used
  • Electronic volume settings without having to open the front cover of the unit
  • Integrated heating in the unit to stop freezing and condensation
  • PC programming via USB cable (to be purchased separately) or by DTMF/phone. The PC programming software is Microsoft Windows compatible
  • The entry phones can be surface of flush mounted
  • Rain hoods available
  • Fitting kits available

Technical Data

  • Operating conditions:
    Temperature -20 to +50°C
    Humidity 0% to 80% at 30°C
  • Dimensions: 208mm x 99mm x 30mm
  • Weight: 350g
  • Basic function powered from the telephone line
  • Power supply 12-24V DC or 10-15V AC
  • Power consumption maximum 250mA
  • Protection rating IP44 (Ingris protection)
  • Caste aluminium surround
  • Backlit buttons

Telephone Line

  • Impedance: 220R+820R//115nF (600 ohms)
  • Voltage line: 20V-60V
  • Current of line20mA-60mA
  • Dial: tone (DTMF)/pulse

Additional Information

  • Maximum voltage of relay 48V
  • Maximum current of relay 1.5A
  • Board heating 1.5W with temp. regulation

moshi-analogue-block-daigram
